Description

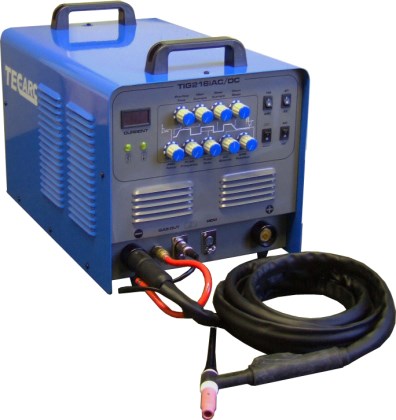

AC DC Inverter welding machine, A heavy duty professional inverter welding machine designed to give the best performance in the industry. This has the following features; 60% duty cycle @ 40 degrees @ maximum output current, very high efficiency so uses less electric than most and all will work from a 13A plug*, excellent welding performance with a very stable and quiet arc, large 35-50mm connectors. The machine is robustly constructed with all internal parts mounted in such a way as to prevent damage caused by small drops which is a common problem with many inverters, the power components are rated to give a large safety margin for the best reliability and Importantly this machine is easy to work on and always repairable should a fault occur outside warranty. All models are built to BS EN 60974-1 and are CE marked. This machine is designed for high quality AC & DC TIG welding & MMA stick welding. The machine is fitted with the following; HF to start the arc, infinitely variable output between 5 and 200 amps, pre & post gas, slope down, torch trigger latching, built in pulser with variable freq, base current & pulse width, true AC squarewave with balance to control arc cleaning & penetration, digital ammeter, arc force on MMA, remote socket for foot control etc. Technical spec TIG 216i AC DC Supply voltage 230V Fuse (slow blow)* 13/16A Max (OCV) 80V Duty cycle 200A @ 60% Size approx 520Lx370Hx320 Weight approx 24KG Protection IP21
